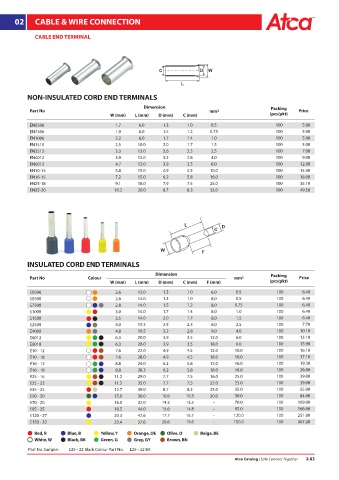

Page 19 - ATCA CATALOG 2019

02 CABLE & WIRE CONNECTION

CABLE END TERMINAL

C D W

L
NON-INSULATED CORD END TERMINALS

Dimension Packing
Part No mm² Price
W (mm) L (mm) D (mm) C (mm) (pcs/pkt)
EN0506 1.7 6.0 1.3 1.0 0.5 100 5.00
EN7506 1.9 6.0 1.5 1.2 0.75 100 5.00
EN1006 2.2 6.0 1.7 1.4 1.0 100 5.00
EN1510 2.5 10.0 2.0 1.7 1.5 100 5.00
EN2512 3.3 12.0 2.6 2.3 2.5 100 7.00
EN4012 3.9 12.0 3.2 2.8 4.0 100 9.00
EN6012 4.7 12.0 3.9 3.5 6.0 100 12.00
EN10-15 5.8 15.0 4.9 4.5 10.0 100 15.40
EN16-15 7.2 15.0 6.2 5.8 16.0 100 18.00
EN25-18 9.1 18.0 7.9 7.5 25.0 100 35.10
EN35-20 10.2 20.0 8.7 8.3 35.0 100 49.50

L D
C

W F

INSULATED CORD END TERMINALS

Dimension Packing
Part No Colour mm² Price
W (mm) L (mm) D (mm) C (mm) F (mm) (pcs/pkt)
E0506 2.6 12.0 1.3 1.0 6.0 0.5 100 6.40
E0508 2.6 14.0 1.3 1.0 8.0 0.5 100 6.40
E7508 2.8 14.0 1.5 1.2 8.0 0.75 100 6.40
E1008 3.0 14.0 1.7 1.4 8.0 1.0 100 6.40
E1508 3.5 14.0 2.0 1.7 8.0 1.5 100 6.40
E2508 4.0 15.2 2.5 2.3 8.0 2.5 100 7.70
E4009 4.8 16.5 3.2 2.8 9.0 4.0 100 10.10
E6012 6.3 20.0 3.9 3.5 12.0 6.0 100 13.10
E6018 6.3 26.0 3.9 3.5 18.0 6.0 100 15.90
E10 - 12 7.6 22.0 4.9 4.5 12.0 10.0 100 16.10
E10 - 18 7.6 28.0 4.9 4.5 18.0 10.0 100 17.10
E16 - 12 8.8 24.0 6.2 5.8 12.0 16.0 100 19.30
E16 - 18 8.8 28.3 6.2 5.8 18.0 16.0 100 26.00
E25 - 16 11.2 29.0 7.7 7.5 16.0 25.0 100 39.00
E25 - 22 11.2 35.0 7.7 7.5 22.0 25.0 100 39.00
E35 - 25 12.7 39.0 8.7 8.3 25.0 35.0 100 55.00
E50 - 20 15.0 36.0 10.9 10.3 20.0 50.0 100 84.00
E70 - 20 16.0 37.0 14.3 13.5 - 70.0 100 109.00
E95 - 25 18.5 44.0 15.6 14.8 - 95.0 100 166.00
E120 - 27 20.3 47.6 17.7 16.7 - 120.0 100 251.80
E150 - 32 23.4 57.6 20.6 19.6 - 150.0 100 367.20
Red, R Blue, B Yellow, Y Orange, OE Olive, O Beige, BE
White, W Black, BK Green, G Grey, GY Brown, BN
Part No. Sample: E25 - 22 Black Colour Part No. E25 - 22 BK
