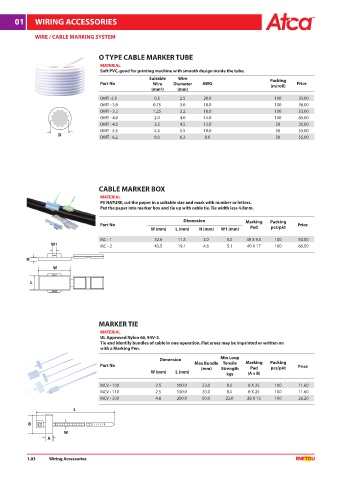

Page 10 - ATCA CATALOG 2019

01 WIRING ACCESSORIES

WIRE / CABLE MARKING SYSTEM

O TYPE CABLE MARKER TUBE
MATERIAL
Soft PVC, good for printing machine with smooth design inside the tube.
Suitable Wire Packing
Part No Wire Diameter AWG (m/roll) Price
(mm²) (mm)
OMT -2.5 0.5 2.5 20.0 100 33.00
OMT - 3.0 0.75 3.0 18.0 100 36.00
OMT - 3.2 1.25 3.2 16.0 100 53.00
OMT - 4.0 2.0 4.0 14.0 100 65.00
OMT - 4.5 3.5 4.5 12.0 50 35.00
OMT - 5.5 5.5 5.5 10.0 50 55.00
D
OMT - 6.2 8.0 6.2 8.0 50 55.00

CABLE MARKER BOX
MATERIAL
PE NATURE, cut the paper in a suitable size and mark with number or letters.
Put the paper into marker box and tie up with cable tie. Tie width less 4.8mm.

Dimension Marking Packing
Part No Price
W (mm) L (mm) H (mm) W1 (mm) Pad pcs/pkt
MC - 1 32.6 11.5 3.0 5.0 30 X 9.5 100 50.00
W1 MC - 2 43.5 19.1 4.6 5.1 40 X 17 100 66.50

H
W

L

MARKER TIE
MATERIAL
UL Approved Nylon 66, 94V-2.
Tie and identify bundles of cable in one operation. Flat areas may be imprinted or written on
with a Marking Pen.
Dimension Min Loop
Part No Max Bundle Tensile Marking Packing Price
(mm) Strength Pad pcs/pkt
W (mm) L (mm) kgs (A x B)
MCV - 100 2.5 100.0 23.0 8.0 8 X 25 100 11.60
MCV - 110 2.5 130.0 20.0 8.0 8 X 25 100 11.60
MCV - 200 4.6 200.0 50.0 22.0 28 X 13 100 26.20
L

B
W
A

1.03 Wiring Accessories
