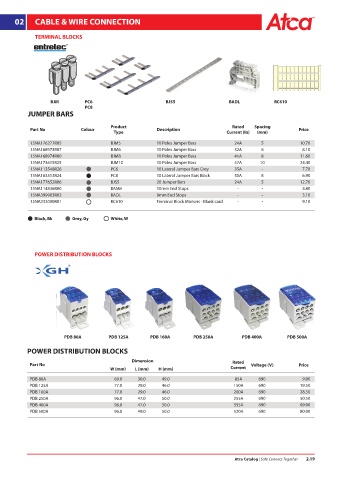

Page 35 - ATCA CATALOG 2019
P. 35
02 CABLE & WIRE CONNECTION
TERMINAL BLOCKS
BJM PC6 BJS5 BADL RC610
PC8
JUMPER BARS
Product Rated Spacing
Part No Colour Description Price
Type Current (In) (mm)
1SNA176277R05 BJM5 10 Poles Jumper Bars 24A 5 10.70
1SNA168973R07 BJM6 10 Poles Jumper Bars 32A 6 8.10
1SNA168974R00 BJM8 10 Poles Jumper Bars 41A 8 11.60
1SNA173615R25 BJM10 10 Poles Jumper Bars 57A 10 24.40
1SNA113548R26 PC6 10 Lateral Jumper Bars Grey 35A - 7.70
1SNA163313R24 PC8 10 Lateral Jumper Bars Black 50A 8 6.90
1SNA177652R06 BJS5 20 Jumper Bars 24A 5 12.70
1SNA114836R00 BAMH 10mm End Stops - - 4.80
1SNA399903R02 BADL 9mm End Stops - - 3.10
1SNA233000R01 RC610 Terminal Block Markers - Blank card - - 9.10
Black, Bk Grey, Gy White, W
POWER DISTRIBUTION BLOCKS
®
PDB 80A PDB 125A PDB 160A PDB 250A PDB 400A PDB 500A
POWER DISTRIBUTION BLOCKS
Dimension Rated
Part No Voltage (V) Price
W (mm) L (mm) H (mm) Current
PDB 80A 69.0 30.0 49.0 85A 690 9.00
PDB 125A 77.0 29.0 46.0 150A 690 19.50
PDB 160A 77.0 29.0 46.0 200A 690 28.50
PDB 250A 96.0 47.0 50.0 255A 690 50.50
PDB 400A 96.0 47.0 50.0 335A 690 69.00
PDB 500A 96.0 49.0 50.0 520A 690 80.00
Atca Catalog | Safe Connect Together 2.19
