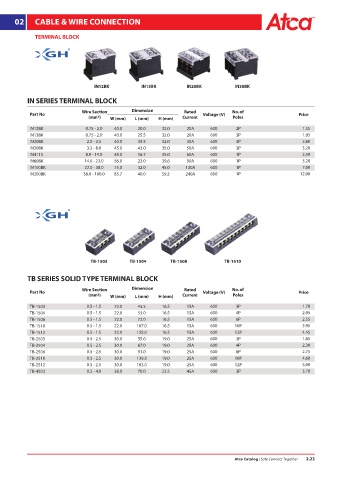

Page 39 - ATCA CATALOG 2019

02 CABLE & WIRE CONNECTION

TERMINAL BLOCK
®

IN12BK IN13BK IN20BK IN30BK

IN SERIES TERMINAL BLOCK

Wire Section Dimension Rated No. of
Part No Voltage (V) Price
(mm²) W (mm) L (mm) H (mm) Current Poles
IN12BK 0.75 - 2.0 40.0 20.0 32.0 20A 600 2P 1.55
IN13BK 0.75 - 2.0 40.0 25.5 32.0 20A 600 3P 1.95
IN20BK 2.0 - 3.5 40.0 35.5 32.0 30A 600 3P 2.80
IN30BK 3.5 - 8.0 45.0 43.0 35.0 50A 600 3P 3.20
IN411S 8.0 - 14.0 45.0 16.7 35.0 60A 600 1P 2.50
IN60BK 14.0 - 22.0 56.0 23.0 39.6 90A 600 1P 3.20
IN100BK 22.0 - 38.0 75.0 32.0 45.0 130A 600 1P 7.00
IN200BK 38.0 - 100.0 85.7 40.0 59.5 240A 600 1P 12.00

®

TB-1503 TB-1504 TB-1508 TB-1510

TB SERIES SOLID TYPE TERMINAL BLOCK

Wire Section Dimension Rated No. of
Part No Voltage (V) Price
(mm²) W (mm) L (mm) H (mm) Current Poles
TB-1503 0.5 - 1.5 22.0 45.5 16.5 15A 600 3P 1.70
TB-1504 0.5 - 1.5 22.0 55.0 16.5 15A 600 4P 2.05
TB-1506 0.5 - 1.5 22.0 72.0 16.5 15A 600 6P 2.55
TB-1510 0.5 - 1.5 22.0 107.0 16.5 15A 600 10P 3.95
TB-1512 0.5 - 1.5 22.0 125.0 16.5 15A 600 12P 4.45
TB-2503 0.5 - 2.5 30.0 55.0 19.0 25A 600 3P 1.85
TB-2504 0.5 - 2.5 30.0 67.0 19.0 25A 600 4P 2.30
TB-2506 0.5 - 2.5 30.0 91.0 19.0 25A 600 6P 2.75
TB-2510 0.5 - 2.5 30.0 139.5 19.0 25A 600 10P 4.60
TB-2512 0.5 - 2.5 30.0 163.0 19.0 25A 600 12P 5.00
TB-4503 0.5 - 4.0 38.0 70.0 23.5 45A 600 3P 3.70

Atca Catalog | Safe Connect Together 2.23
