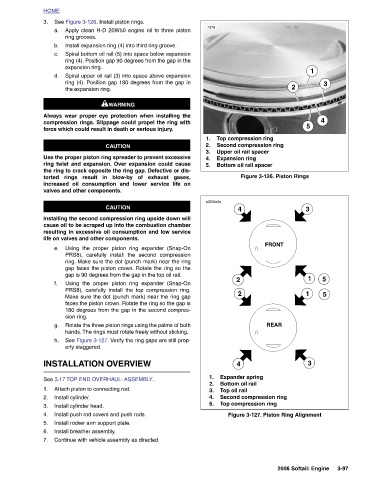

Page 884 - 2006 HARLEY FLSTCI SERVICE MANUAL
P. 884
3-97
3 5
4 5
1
5 3 1 1 3 2006 Softail: Engine
2 Figure 3-126. Piston Rings FRONT REAR Figure 3-127. Piston Ring Alignment
Top compression ring Second compression ring Upper oil rail spacer Expansion ring Bottom oil rail spacer 4 2 2 4 Expander spring Bottom oil rail Top oil rail Second compression ring Top compression ring
7376 1. 2. 3. 4. 5. s0235x3x 1. 2. 3. 4. 5.
See Figure 3-126. Install piston rings. Apply clean H-D 20W50 engine oil to three piston ring grooves. Install expansion ring (4) into third ring groove. Spiral bottom oil rail (5) into space below expansion ring (4). Position gap 90 degrees from the gap in the expansion ring. Spiral upper oil rail (3) into space above expansion ring (4). Position gap 180 degrees from the gap in the expansion ring. 1WARNING 1WARNING Always wear proper eye protection when installing the compression rings. Slippage could propel the ring with force which could result in death or serious injury. CAUTION Use the proper piston ring spreader to prevent excessive ring
HOME 3. a. b. c. d. e. f. g. 1. Install cylinder. 2. 3. 4. 5. 6. 7.
