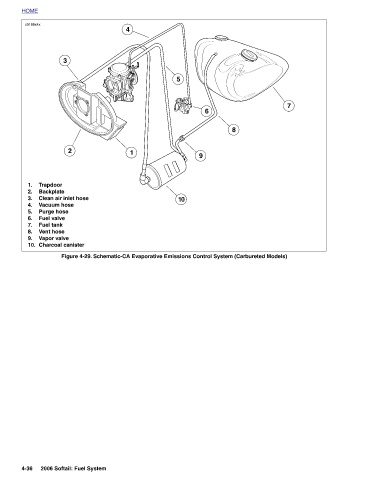

5 Figure 4-29. Schematic-CA Evaporative Emissions Control System (Carbureted Models)
1
4
2 2006 Softail: Fuel System
3 Clean air inlet hose Charcoal canister
Trapdoor Backplate Vacuum hose Purge hose Fuel valve Fuel tank Vent hose Vapor valve
