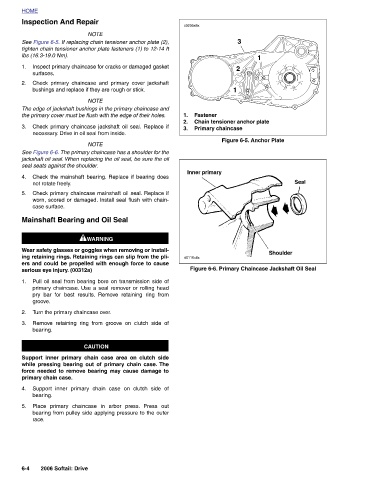

Page 987 - 2006 HARLEY FLSTCI SERVICE MANUAL

Seal Shoulder

Chain tensioner anchor plate
1 Figure 6-5. Anchor Plate Figure 6-6. Primary Chaincase Jackshaft Oil Seal

3 2
1

Fastener Primary chaincase Inner primary

s0205x6x 1. 2. 3. d0116x6x

Inspection And Repair NOTE See Figure 6-5. If replacing chain tensioner anchor plate (2), tighten chain tensioner anchor plate fasteners (1) to 12-14 ft lbs (16.3-19.0 Nm). Inspect primary chaincase for cracks or damaged gasket Check primary chaincase and primary cover jackshaft bushings and replace if they are rough or stick. NOTE The edge of jackshaft bushings in the primary chaincase and the primary cover must be flush with the edge of their holes. Check primary chaincase jackshaft oil seal. Replace if necessary. Drive in oil seal from inside. NOTE See Figure 6-6. The primary chaincase has a shoulder for the jackshaft oil seal. When replacing t

HOME 1. surfaces. 2. 3. 4. 5. 1. groove. 2. 3. bearing. 4. bearing. 5. race. 6-4
