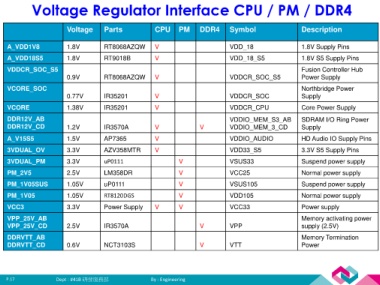

Voltage Regulator Interface CPU / PM / DDR4

Voltage Parts CPU PM DDR4 Symbol Description

A_VDD1V8 1.8V RT8068AZQW V VDD_18 1.8V Supply Pins

A_VDD18S5 1.8V RT9018B V VDD_18_S5 1.8V S5 Supply Pins

VDDCR_SOC_S5 Fusion Controller Hub
0.9V RT8068AZQW V VDDCR_SOC_S5 Power Supply

VCORE_SOC Northbridge Power
0.77V IR35201 V VDDCR_SOC Supply

VCORE 1.38V IR35201 V VDDCR_CPU Core Power Supply
DDR12V_AB VDDIO_MEM_S3_AB SDRAM I/O Ring Power
DDR12V_CD 1.2V IR3570A V V VDDIO_MEM_3_CD Supply

A_V15S5 1.5V AP7365 V VDDIO_AUDIO HD Audio IO Supply Pins

3VDUAL_OV 3.3V AZV358MTR V VDD33_S5 3.3V S5 Supply Pins
3VDUAL_PM 3.3V uP0111 V VSUS33 Suspend power supply

PM_2V5 2.5V LM358DR V VCC25 Normal power supply

PM_1V05SUS 1.05V uP0111 V VSUS105 Suspend power supply

PM_1V05 1.05V RT8120DGS V VDD105 Normal power supply
VCC3 3.3V Power Supply V V VCC33 Power supply

VPP_25V_AB Memory activating power
VPP_25V_CD 2.5V IR3570A V VPP supply (2.5V)
DDRVTT_AB Memory Termination
DDRVTT_CD 0.6V NCT3103S V VTT Power
