Page 21 - X399 AORUS Gaming 7 Rev 1.0 Introduction_170830

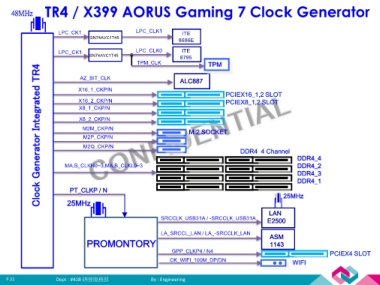

TR4 / X399 AORUS Gaming 7 Clock Generator
48MHz

LPC_CK1 LPC_CLK1 ITE
SN74AVC1T45 8686E

LPC_CK1 LPC_CLK0 ITE
SN74AVC1T45 8795
TPM_CLK TPM
Clock Generator Integrated TR4

AZ_BIT_CLK
ALC887
X16_1_CKP/N

PCIEX16_1,2 SLOT
X16_2_CKP/N PCIEX8_1,2 SLOT
X8_1_CKP/N
X8_2_CKP/N

M2M_CKP/N M.2 SOCKET

M2P_CKP/N
M2Q_CKP/N
DDR4 4 Channel
DDR4_4
MA,B_CLKH0~3,MA,B_CLKL0~3 DDR4_2
DDR4_3
DDR4_1
PT_CLKP / N 25MHz

25MHz
LAN
SRCCLK_USB31A / -SRCCLK_USB31A E2500

LA_SRCCL_LAN / LA_-SRCCLK_LAN ASM
PROMONTORY 1143

GPP_CLKP4 / N4 PCIEX4 SLOT
CK_WIFI_100M_DP/DN WIFI

P.21 Dept : #41B 研發服務部 By : Engineering
