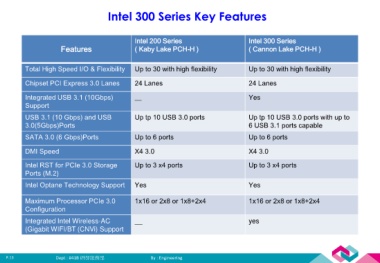

Intel 300 Series Key Features

Intel 200 Series Intel 300 Series
Features ( Kaby Lake PCH-H ) ( Cannon Lake PCH-H )

Total High Speed I/O & Flexibility Up to 30 with high flexibility Up to 30 with high flexibility

Chipset PCI Express 3.0 Lanes 24 Lanes 24 Lanes

Integrated USB 3.1 (10Gbps) __ Yes
Support

USB 3.1 (10 Gbps) and USB Up tp 10 USB 3.0 ports Up tp 10 USB 3.0 ports with up to
3.0(5Gbps)Ports 6 USB 3.1 ports capable

SATA 3.0 (6 Gbps)Ports Up to 6 ports Up to 6 ports

DMI Speed X4 3.0 X4 3.0

Intel RST for PCIe 3.0 Storage Up to 3 x4 ports Up to 3 x4 ports
Ports (M.2)

Intel Optane Technology Support Yes Yes

Maximum Processor PCIe 3.0 1x16 or 2x8 or 1x8+2x4 1x16 or 2x8 or 1x8+2x4
Configuration

Integrated Intel Wireless-AC __ yes
(Gigabit WIFI/BT (CNVi) Support
