Page 17 - Z370 AORUS Gaming 7 Rev 1.0 Introduction -171024
P. 17

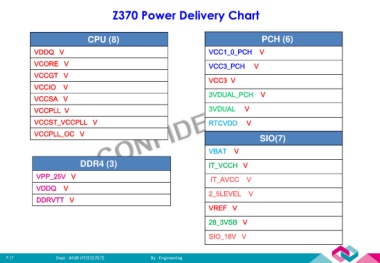

Z370 Power Delivery Chart
CPU (8) PCH (6)
VDDQ V VCC1_0_PCH V
VCORE V VCC3_PCH V
VCCGT V
VCC3 V
VCCIO V
3VDUAL_PCH V
VCCSA V
VCCPLL V 3VDUAL V
VCCST_VCCPLL V RTCVDD V
VCCPLL_OC V
SIO(7)
VBAT V
DDR4 (3) IT_VCCH V
VPP_25V V IT_AVCC V
VDDQ V
2_5LEVEL V
DDRVTT V
VREF V
28_3VSB V
SIO_18V V
P.17 Dept : #41B 研發服務部 By : Engineering
