Page 22 - Z370 AORUS Gaming 7 Rev 1.0 Introduction -171024

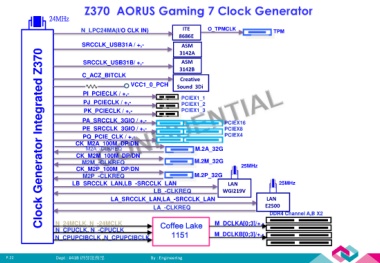

Z370 AORUS Gaming 7 Clock Generator

24MHz

N_LPC24MA(I/O CLK IN) ITE O_TPMCLK TPM
8686E
SRCCLK_USB31A / +,- ASM
Clock Generator Integrated Z370
3142A
SRCCLK_USB31B/ +,- ASM
3142B
C_ACZ_BITCLK
Creative
VCC1_0_PCH Sound 3Di
PI_PCIECLK / +,-
PCIEX1_1
PJ_PCIECLK / +,- PCIEX1_2

PK_PCIECLK / +,- PCIEX1_3
PA_SRCCLK_3GIO / +,- PCIEX16
PE_SRCCLK_3GIO / +,- PCIEX8

PQ_PCIE_CLK / +,- PCIEX4

CK_M2A_100M_DP/DN
M2A_-CLKREQ M.2A_32G

CK_M2M_100M_DP/DN
M2M_-CLKREQ M.2M_32G 25MHz
CK_M2P_100M_DP/DN
M2P_-CLKREQ M.2P_32G
LB_SRCCLK_LAN,LB_-SRCCLK_LAN LAN 25MHz
LB_-CLKREQ WGI219V
LA_SRCCLK_LAN,LA_-SRCCLK_LAN LAN
LA_-CLKREQ E2500
DDR4 Channel A,B X2
N_24MCLK, N_-24MCLK Coffee Lake M_DCLKA[0;3]/+,-
N_CPUCLK, N_-CPUCLK
N_CPUPCIBCLK ,N_CPUPCIBCLK 1151 M_DCLKB[0;3]/+,-

P.22 Dept : #41B 研發服務部 By : Engineering
