Page 24 - Z370 AORUS Gaming 7 Rev 1.0 Introduction -171024

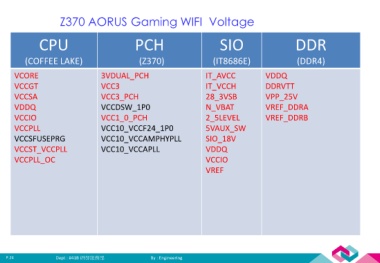

Z370 AORUS Gaming WIFI Voltage

CPU PCH SIO DDR

(COFFEE LAKE) (Z370) (IT8686E) (DDR4)

VCORE 3VDUAL_PCH IT_AVCC VDDQ

VCCGT VCC3 IT_VCCH DDRVTT

VCCSA VCC3_PCH 28_3VSB VPP_25V
VDDQ VCCDSW_1P0 N_VBAT VREF_DDRA

VCCIO VCC1_0_PCH 2_5LEVEL VREF_DDRB

VCCPLL VCC10_VCCF24_1P0 5VAUX_SW

VCCSFUSEPRG VCC10_VCCAMPHYPLL SIO_18V
VCCST_VCCPLL VCC10_VCCAPLL VDDQ

VCCPLL_OC VCCIO
VREF

P.24 Dept : #41B 研發服務部 By : Engineering
