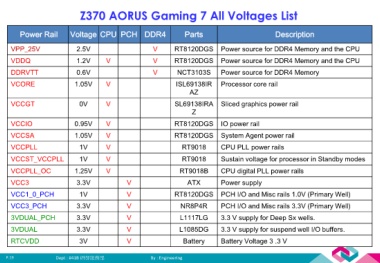

Z370 AORUS Gaming 7 All Voltages List

Power Rail Voltage CPU PCH DDR4 Parts Description

VPP_25V 2.5V V RT8120DGS Power source for DDR4 Memory and the CPU

VDDQ 1.2V V V RT8120DGS Power source for DDR4 Memory and the CPU

DDRVTT 0.6V V NCT3103S Power source for DDR4 Memory

VCORE 1.05V V ISL69138IR Processor core rail
AZ

VCCGT 0V V SL69138IRA Sliced graphics power rail

Z
VCCIO 0.95V V RT8120DGS IO power rail

VCCSA 1.05V V RT8120DGS System Agent power rail
VCCPLL 1V V RT9018 CPU PLL power rails

VCCST_VCCPLL 1V V RT9018 Sustain voltage for processor in Standby modes

VCCPLL_OC 1.25V V RT9018B CPU digital PLL power rails

VCC3 3.3V V ATX Power supply

VCC1_0_PCH 1V V RT8120DGS PCH I/O and Misc rails 1.0V (Primary Well)

VCC3_PCH 3.3V V NR8P4R PCH I/O and Misc rails 3.3V (Primary Well)

3VDUAL_PCH 3.3V V L1117LG 3.3 V supply for Deep Sx wells.

3VDUAL 3.3V V L1085DG 3.3 V supply for suspend well I/O buffers.

RTCVDD 3V V Battery Battery Voltage 3 .3 V
