Page 26 - Z370 AORUS Gaming 7 Rev 1.0 Introduction -171024

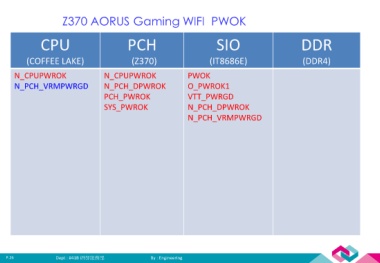

Z370 AORUS Gaming WIFI PWOK

CPU PCH SIO DDR

(COFFEE LAKE) (Z370) (IT8686E) (DDR4)

N_CPUPWROK N_CPUPWROK PWOK

N_PCH_VRMPWRGD N_PCH_DPWROK O_PWROK1

PCH_PWROK VTT_PWRGD
SYS_PWROK N_PCH_DPWROK

N_PCH_VRMPWRGD

P.26 Dept : #41B 研發服務部 By : Engineering
