Page 4 - 100 Series testing notes
P. 4

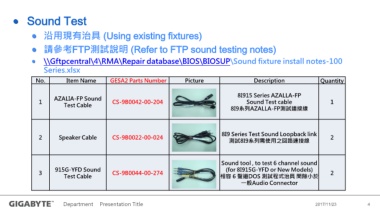

Sound Test


                  沿用現有治具 (Using existing fixtures)

                  請參考FTP測試說明 (Refer to FTP sound testing notes)

                  \\Gftpcentral\4\RMA\Repair database\BIOS\BIOSUP\Sound fixture install notes-100
                  Series.xlsx


              No.            Item Name     GESA2 Parts Number          Picture                   Description              Quantity

                                                                                           8I915 Series AZALLA-FP
                     AZALIA-FP Sound
                1                           CS-9B0042-00-204                                  Sound Test cable                1
                         Test Cable
                                                                                        8I9系列AZALLA-FP測試連接線



                                                                                     8I9 Series Test Sound Loopback link
                2      Speaker Cable        CS-9B0022-00-024                                                                  2
                                                                                        測試8I9系列需使用之回路連接線



                                                                                     Sound tool , to test 6 channel sound
                      915G-YFD Sound                                                   (for 8I915G-YFD or New Models)
                3                           CS-9B0044-00-274                                                                  2
                         Test Cable                                                 相容 6 聲道DOS 測試程式治具 間隙小於
                                                                                            一般Audio Connector
