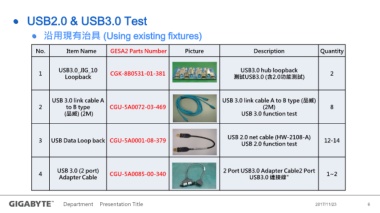

USB2.0 & USB3.0 Test
沿用現有治具 (Using existing fixtures)
No. Item Name GESA2 Parts Number Picture Description Quantity
USB3.0_JIG_10 USB3.0 hub loopback
1 CGK-8B0531-01-381 2
Loopback 測試USB3.0 (含2.0功能測試)
USB 3.0 link cable A USB 3.0 link cable A to B type (品威)
2 to B type CGU-5A0072-03-469 (2M) 8
(品威) (2M) USB 3.0 function test
USB 2.0 net cable (HW-2108-A)
3 USB Data Loop back CGU-5A0001-08-379 12-14
USB 2.0 function test
USB 3.0 (2 port) 2 Port USB3.0 Adapter Cable2 Port
4 CGU-5A0085-00-340 1~2
Adapter Cable USB3.0 連接線"
