Page 5 - 100 Series testing notes
P. 5

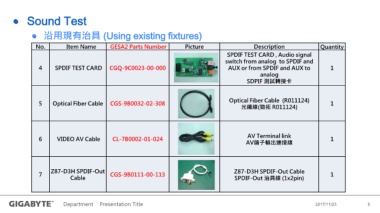

Sound Test
沿用現有治具 (Using existing fixtures)
No. Item Name GESA2 Parts Number Picture Description Quantity
SPDIF TEST CARD , Audio signal
switch from analog to SPDIF and
4 SPDIF TEST CARD CGQ-9C0023-00-000 AUX or from SPDIF and AUX to 1
analog
SDPIF 測試轉接卡
1
5 Optical Fiber Cable CGS-9B0032-02-308 Optical Fiber Cable (R011124)
光纖線(勁拓 R011124)
AV Terminal link
6 VIDEO AV Cable CL-7B0002-01-024 1
AV端子輸出連接線
Z87-D3H SPDIF-Out Z87-D3H SPDIF-Out Cable
7 CGS-9B0111-00-113 1
Cable SPDIF-Out 治具線 (1x2pin)
Department Presentation Title 2017/11/23 5
