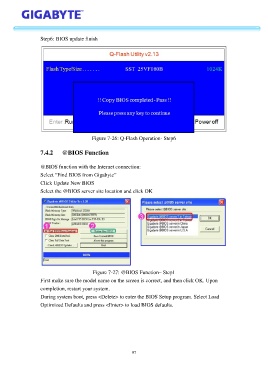

Page 119 - GIGABYTE Service Manual-v3.0-110101

Step6: BIOS update finish

Figure 7-26: Q-Flash Operation- Step6

7.4.2 @BIOS Function

@BIOS function with the Internet connection:

Select “Find BIOS from Gigabyte”
Click Update New BIOS
Select the @BIOS server site location and click OK

Figure 7-27: @BIOS Function– Step1
First make sure the model name on the screen is correct, and then click OK. Upon
completion, restart your system.
During system boot, press <Delete> to enter the BIOS Setup program. Select Load

Optimized Defaults and press <Enter> to load BIOS defaults.

97
