Page 120 - GIGABYTE Service Manual-v3.0-110101
P. 120

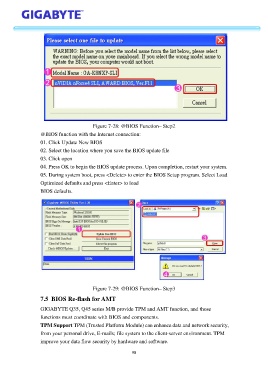

Figure 7-28: @BIOS Function– Step2
@BIOS function with the Internet connection:
01. Click Update New BIOS
02. Select the location where you save the BIOS update file
03. Click open
04. Press OK to begin the BIOS update process. Upon completion, restart your system.
05. During system boot, press <Delete> to enter the BIOS Setup program. Select Load
Optimized defaults and press <Enter> to load
BIOS defaults.
Figure 7-29: @BIOS Function– Step3
7.5 BIOS Re-flash for AMT
GIGABYTE Q35, Q45 series M/B provide TPM and AMT function, and those
functions must coordinate with BIOS and components.
TPM Support TPM (Trusted Platform Module) can enhance data and network security,
from your personal drive, E-mails; file system to the client-server environment. TPM
improve your data flow security by hardware and software.
98
