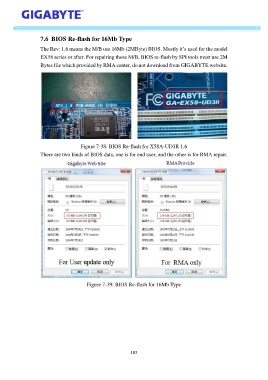

7.6 BIOS Re-flash for 16Mb Type
The Rev: 1.6 means the M/B use 16Mb (2MByte) BIOS. Mostly it’s used for the model
EX58 series or after. For repairing those M/B, BIOS re-flash by SPI tools must use 2M
Bytes file which provided by RMA center, do not download from GIGABYTE website.
Figure 7-38: BIOS Re-flash for X58A-UD3R 1.6
There are two kinds of BIOS data, one is for end user, and the other is for RMA repair.
Figure 7-39: BIOS Re-flash for 16Mb Type
