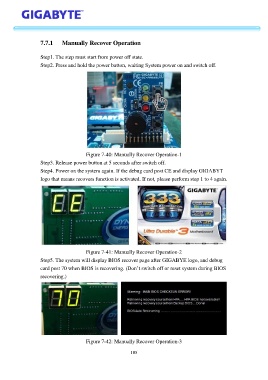

7.7.1 Manually Recover Operation
Step1. The step must start from power off state.
Step2. Press and hold the power button, waiting System power on and switch off.
Figure 7-40: Manually Recover Operation-1
Step3. Release power button at 5 seconds after switch off.
Step4. Power on the system again. If the debug card post CE and display GIGABYT
logo that means recovers function is activated. If not, please perform step 1 to 4 again.
Figure 7-41: Manually Recover Operation-2
Step5. The system will display BIOS recover page after GIGABYE logo, and debug
card post 70 when BIOS is recovering. (Don’t switch off or reset system during BIOS
recovering.)
Figure 7-42: Manually Recover Operation-3
