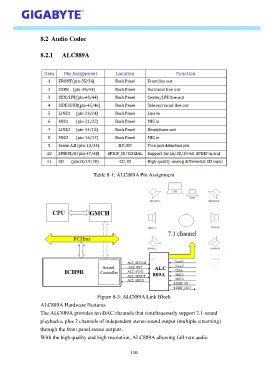

Page 132 - GIGABYTE Service Manual-v3.0-110101

8.2 Audio Codec

8.2.1 ALC889A

Table 8-1: ALC889A Pin Assignment

Figure 8-3: ALC889A Link Block

ALC889A Hardware Features
The ALC889A provides ten DAC channels that simultaneously support 7.1 sound
playbacks, plus 2 channels of independent stereo sound output (multiple streaming)
through the front panel stereo outputs.

With the high quality and high resolution, ALC889A allowing full-rate audio

110
