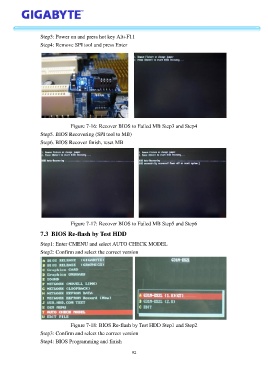

Page 114 - GIGABYTE Service Manual-v3.0-110101
P. 114
Step3: Power on and press hot key Alt+F11
Step4: Remove SPI tool and press Enter
Figure 7-16: Recover BIOS to Failed MB Step3 and Step4
Step5. BIOS Recovering (SPI tool to MB)
Step6. BIOS Recover finish, reset MB
Figure 7-17: Recover BIOS to Failed MB Step5 and Step6
7.3 BIOS Re-flash by Test HDD
Step1: Enter CMENU and select AUTO CHECK MODEL
Step2: Confirm and select the correct version
Figure 7-18: BIOS Re-flash by Test HDD Step1 and Step2
Step3: Confirm and select the correct version
Step4: BIOS Programming and finish
92
