P. 109

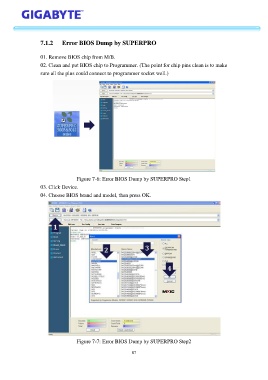

7.1.2 Error BIOS Dump by SUPERPRO
01. Remove BIOS chip from M/B.
02. Clean and put BIOS chip to Programmer. (The point for chip pins clean is to make
sure all the pins could connect to programmer socket well.)
Figure 7-6: Error BIOS Dump by SUPERPRO Step1
03. Click Device.
04. Choose BIOS brand and model, then press OK.
Figure 7-7: Error BIOS Dump by SUPERPRO Step2
87
