Check Steps:

01. Check Reset signal PH_RESETnA by scope.
02. Check Data bus PH_DD [0:15] impedance by multimeter
03. Check the impedance of control signals.

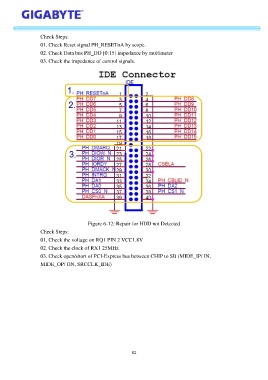

Figure 6-12: Repair for HDD not Detected
Check Steps:

01. Check the voltage on RQ1 PIN 2 VCC1.8V
02. Check the clock of RX1 25MHz
03. Check open/short of PCI-Express bus between CHIP to SB (MIDE_IP/ IN,
MIDE_OP/ ON, SRCCLK_IDE)
