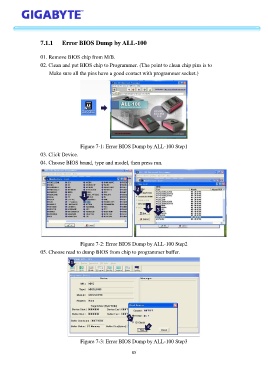

7.1.1 Error BIOS Dump by ALL-100
01. Remove BIOS chip from M/B.
02. Clean and put BIOS chip to Programmer. (The point to clean chip pins is to
Make sure all the pins have a good contact with programmer socket.)
Figure 7-1: Error BIOS Dump by ALL-100 Step1
03. Click Device.
04. Choose BIOS brand, type and model, then press run.
Figure 7-2: Error BIOS Dump by ALL-100 Step2
05. Choose read to dump BIOS from chip to programmer buffer.
Figure 7-3: Error BIOS Dump by ALL-100 Step3
85
