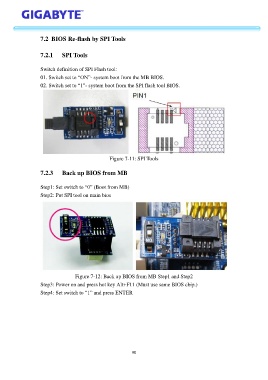

7.2 BIOS Re-flash by SPI Tools
7.2.1 SPI Tools
Switch definition of SPI Flash tool:
01. Switch set to “ON”- system boot from the MB BIOS.
02. Switch set to “1”- system boot from the SPI flash tool BIOS.
Figure 7-11: SPI Tools
7.2.3 Back up BIOS from MB
Step1: Set switch to “0” (Boot from MB)
Step2: Put SPI tool on main bios
Figure 7-12: Back up BIOS from MB Step1 and Step2
Step3: Power on and press hot key Alt+F11 (Must use same BIOS chip.)
Step4: Set switch to “1” and press ENTER
