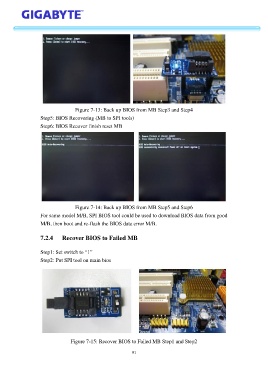

Figure 7-13: Back up BIOS from MB Step3 and Step4
Step5: BIOS Recovering (MB to SPI tools)
Step6: BIOS Recover finish reset MB

Figure 7-14: Back up BIOS from MB Step5 and Step6
For same model M/B, SPI BIOS tool could be used to download BIOS data from good
M/B, then boot and re-flash the BIOS data error M/B.

7.2.4 Recover BIOS to Failed MB

Step1: Set switch to “1”
Step2: Put SPI tool on main bios

Figure 7-15: Recover BIOS to Failed MB Step1 and Step2

91
