P. 110

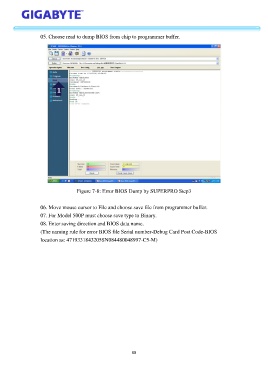

05. Choose read to dump BIOS from chip to programmer buffer.
Figure 7-8: Error BIOS Dump by SUPERPRO Step3
06. Move mouse cursor to File and choose save file from programmer buffer.
07. For Model 500P must choose save type to Binary.
08. Enter saving direction and BIOS data name.
(The naming rule for error BIOS file Serial number-Debug Card Post Code-BIOS
location as: 4719331843205SN084480048997-C5-M)
88
