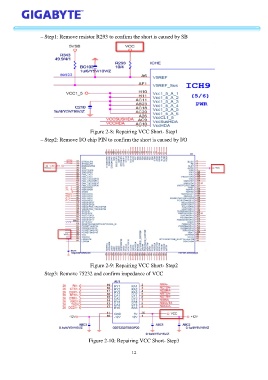

– Step1: Remove resistor R293 to confirm the short is caused by SB
























                                         Figure 2-8: Repairing VCC Short- Step1
                   – Step2: Remove I/O chip PIN to confirm the short is caused by I/O
































                                         Figure 2-9: Repairing VCC Short- Step2
                   – Step3: Remove 75232 and confirm impedance of VCC
















                                        Figure 2-10: Repairing VCC Short- Step3
