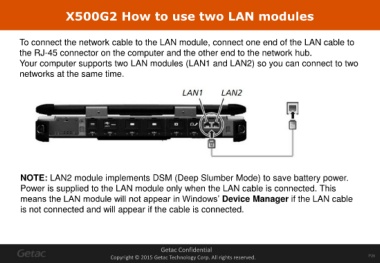

X500G2 How to use two LAN modules

To connect the network cable to the LAN module, connect one end of the LAN cable to
the RJ-45 connector on the computer and the other end to the network hub.

Your computer supports two LAN modules (LAN1 and LAN2) so you can connect to two

networks at the same time.

NOTE: LAN2 module implements DSM (Deep Slumber Mode) to save battery power.

Power is supplied to the LAN module only when the LAN cable is connected. This

means the LAN module will not appear in Windows’ Device Manager if the LAN cable
is not connected and will appear if the cable is connected.
