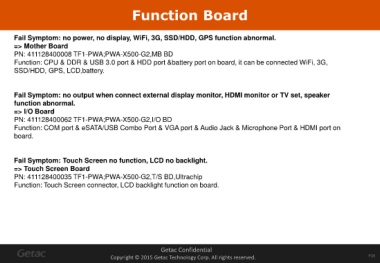

Function Board

Fail Symptom: no power, no display, WiFi, 3G, SSD/HDD, GPS function abnormal.
=> Mother Board
PN: 411128400008 TF1-PWA;PWA-X500-G2,MB BD
Function: CPU & DDR & USB 3.0 port & HDD port &battery port on board, it can be connected WiFi, 3G,
SSD/HDD, GPS, LCD,battery.

Fail Symptom: no output when connect external display monitor, HDMI monitor or TV set, speaker

function abnormal.
=> I/O Board
PN: 411128400062 TF1-PWA;PWA-X500-G2,I/O BD
Function: COM port & eSATA/USB Combo Port & VGA port & Audio Jack & Microphone Port & HDMI port on
board.

Fail Symptom: Touch Screen no function, LCD no backlight.
=> Touch Screen Board
PN: 411128400035 TF1-PWA;PWA-X500-G2,T/S BD,Ultrachip
Function: Touch Screen connector, LCD backlight function on board.
