Page 39 - Z270X-Gaming 7 Rev 1.0 Introduction -170113

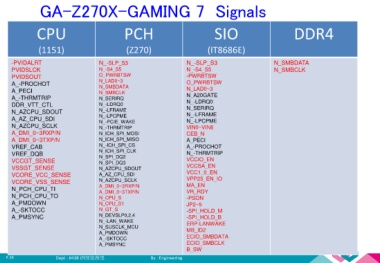

GA-Z270X-GAMING 7 Signals

CPU PCH SIO DDR4

(1151) (Z270) (IT8686E)

-PVIDALRT N_-SLP_S3 N_-SLP_S3 N_SMBDATA
PVIDSLCK N_-S4_S5 N_-S4_S5 N_SMBCLK
PVIDSOUT O_PWRBTSW -PWRBTSW
N_LAD0~3
A_-PROCHOT N_SMBDATA O_PWRBTSW
A_PECI N_SMBCLK N_LAD0~3
A_-THRMTRIP N_SERIRQ N_A20GATE
N_-LDRQ0
DDR_VTT_CTL N_-LDRQ0 N_SERIRQ
N_AZCPU_SDOUT N_-LFRAME N_-LFRAME
N_-LPCPME
A_AZ_CPU_SDI N_-PCIE_WAKE N_-LPCPME
N_AZCPU_SCLK N_-THRMTRIP VIN0~VIN6
A_DMI_0~3RXP/N N_ICH_SPI_MOSI CEB_N
A_DMI_0~3TXP/N N_ICH_SPI_MISO A_PECI
VREF_CAB N_-ICH_SPI_CS A_-PROCHOT
N_ICH_SPI_CLK
VREF_DQB N_SPI_DQ2 N_-THRMTRIP
VCCGT_SENSE N_SPI_DQ3 VCCIO_EN
VSSGT_SENSE N_AZCPU_SDOUT VCCSA_EN
VCORE_VCC_SENSE A_AZ_CPU_SDI VCC1_0_EN
VCORE_VSS_SENSE N_AZCPU_SCLK VPP25_EN_IO
MA_EN
A_DMI_0~3RXP/N
N_PCH_CPU_TI A_DMI_0~3TXP/N VR_RDY
N_PCH_CPU_TO N_CPU_S -PSON
A_PMDOWN N_CPU_S1 JP2~5
A_-SKTOCC N_GT_S -SPI_HOLD_M
A_PMSYNC N_DEVSLP0,2,4 -SPI_HOLD_B
N_-LAN_WAKE
ERP-LANWAKE
N_SUSCLK_MCU
A_PMDOWN MB_ID2
A_-SKTOCC ECIO_SMBDATA
A_PMSYNC ECIO_SMBCLK
B_SW
P.39 Dept : #41B 研發服務部 By : Engineering
