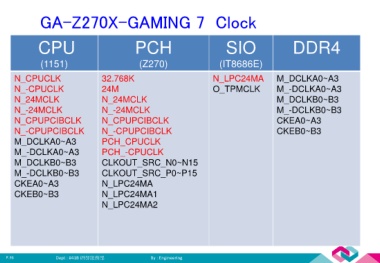

GA-Z270X-GAMING 7  Clock





                CPU                                     PCH                                   SIO                        DDR4



                  (1151)                                  (Z270)                           (IT8686E)


       N_CPUCLK                            32.768K                                      N_LPC24MA                  M_DCLKA0~A3

       N_-CPUCLK                           24M                                          O_TPMCLK                   M_-DCLKA0~A3
       N_24MCLK                            N_24MCLK                                                                M_DCLKB0~B3

       N_-24MCLK                           N_-24MCLK                                                               M_-DCLKB0~B3

       N_CPUPCIBCLK                        N_CPUPCIBCLK                                                            CKEA0~A3
       N_-CPUPCIBCLK                       N_-CPUPCIBCLK                                                           CKEB0~B3

       M_DCLKA0~A3                         PCH_CPUCLK

       M_-DCLKA0~A3                        PCH_-CPUCLK
       M_DCLKB0~B3                         CLKOUT_SRC_N0~N15

       M_-DCLKB0~B3                        CLKOUT_SRC_P0~P15

       CKEA0~A3                            N_LPC24MA
       CKEB0~B3                            N_LPC24MA1

                                           N_LPC24MA2













   P.36                 Dept : #41B 研發服務部                      By : Engineering
