Page 33 - Z270X-Gaming 7 Rev 1.0 Introduction -170113
P. 33

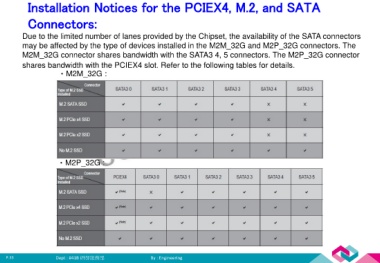

Installation Notices for the PCIEX4, M.2, and SATA

            Connectors:


          Due to the limited number of lanes provided by the Chipset, the availability of the SATA connectors
          may be affected by the type of devices installed in the M2M_32G and M2P_32G connectors. The

          M2M_32G connector shares bandwidth with the SATA3 4, 5 connectors. The M2P_32G connector

          shares bandwidth with the PCIEX4 slot. Refer to the following tables for details.
                         ‧M2M_32G :




















                         ‧M2P_32G :























   P.33                 Dept : #41B 研發服務部                      By : Engineering
