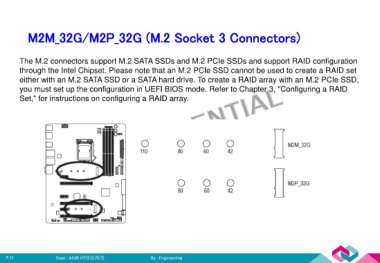

M2M_32G/M2P_32G (M.2 Socket 3 Connectors)
The M.2 connectors support M.2 SATA SSDs and M.2 PCIe SSDs and support RAID configuration
through the Intel Chipset. Please note that an M.2 PCIe SSD cannot be used to create a RAID set
either with an M.2 SATA SSD or a SATA hard drive. To create a RAID array with an M.2 PCIe SSD,
you must set up the configuration in UEFI BIOS mode. Refer to Chapter 3, "Configuring a RAID
Set," for instructions on configuring a RAID array.
