Page 31 - Z270X-Gaming 7 Rev 1.0 Introduction -170113
P. 31

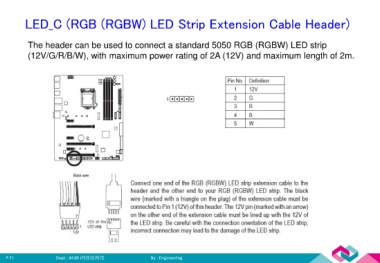

LED_C (RGB (RGBW) LED Strip Extension Cable Header)
The header can be used to connect a standard 5050 RGB (RGBW) LED strip
(12V/G/R/B/W), with maximum power rating of 2A (12V) and maximum length of 2m.
P.31 Dept : #41B 研發服務部 By : Engineering
