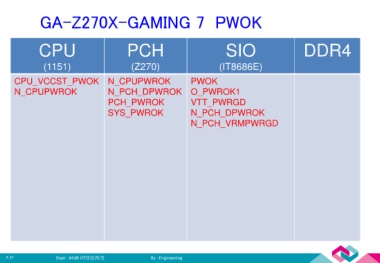

GA-Z270X-GAMING 7  PWOK





                 CPU                                 PCH                                      SIO                             DDR4




                   (1151)                              (Z270)                              (IT8686E)


       CPU_VCCST_PWOK  N_CPUPWROK                                              PWOK
       N_CPUPWROK                            N_PCH_DPWROK  O_PWROK1

                                             PCH_PWROK                         VTT_PWRGD

                                             SYS_PWROK                         N_PCH_DPWROK
                                                                               N_PCH_VRMPWRGD
