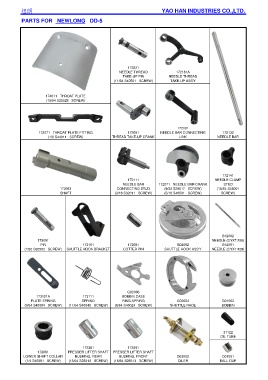

Page 25 - 2017 MASTER CATALOG

纽朗 YAO HAN INDUSTRIES CO.,LTD.

PARTS FOR NEWLONG DD-5

172221
NEEDLE THREAD 172181A
TAKE-UP PIN NEEDLE THREAD
(11/64 S40501 SCREW) TAKE-UP ASS'Y

174011 THROAT PLATE
(15/64 S28028 SCREW)

172101
173071 THROAT PLATE FITTING 172091 NEEDLE BAR CONNECTING 172132
(1/8 S44011 SCREW) THREAD TAKE-UP CRANK LINK NEEDLE BAR

172141
172111 NEEDLE CLAMP
NEEDLE BAR 172071 NEEDLE BAR CRANK STUD
173081 CONNECTING STUD (9/32 S28017 SCREW) (15/64 S28001
SHAFT (3/16 S32011 SCREW) (5/16 S40501 SCREW) SCREW)

B12002
173091 NEEDLE (CYX7 #28)
PIN 173101 172081 G02002 B12001
(7/32 S32502 SCREW) SHUTTLE HOOK BRACKET COTTER PIN SHUTTLE HOOK ASS'Y NEEDLE (CYX7 #29)

G02006
173121A 173111 BOBBIN CASE
PLATE SPRING SPRING RING SPRING G02004 G01002
(9/64 S40004 SCREW) (11/64 S40045 SCREW) (9/64 S40024 SCREW) SHUTTLE RACE BOBBIN

31122
OIL TUBE

172381 172391
172061 PRESSER LIFTER SHAFT PRESSER LIFTER SHAFT
LOWER SHAFT COLLAR BUSHING, REAR BUSHING, FRONT D03002 D01001
(1/4 S40501 SCREW) (15/64 S28513 SCREW) (15/64 S28513 SCREW) OILER BALL CUP
