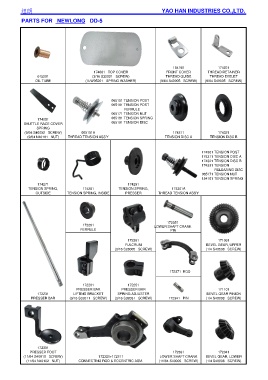

Page 26 - 2017 MASTER CATALOG

纽朗 YAO HAN INDUSTRIES CO.,LTD.

PARTS FOR NEWLONG DD-5

154192 174221
174061 TOP COVER FRONT COVER THREAD RETAINER
015201 (3/16 S32021 SCREW) THREAD GUIDE THREAD EYELET
OIL TUBE (¼ W05201 SPRING WASHER) (9/64 S40005 SCREW) (9/64 S40005 SCREW)

065151 TENSION POST
065161 TENSION POST
FERRULE
065171 TENSION NUT
174051 065181 TENSION SPRING
SHUTTLE RACE COVER 065191 TENSION DISC
SPRING
(9/64 S40052 SCREW) 065151A 174311 174321
(9/64 N40101 NUT) THREAD TENSION ASS'Y TENSION DISC A TENSION DISC B

174301 TENSION POST
174311 TENSION DISC A
174321 TENSION DISC B
174331 TENSION
RELEASING DISC
065171 TENSION NUT
154161 TENSION SPRING
174271 174291
TENSION SPRING, 174281 TENSION SPRING, 174301A
OUTSIDE TENSION SPRING, INSIDE PRESSER THREAD TENSION ASS'Y

172351
172291 LOWER SHAFT CRANK
FERRULE PIN

172361 171091
FULCRUM BEVEL GEAR, UPPER
(3/16 S28005 SCREW) (1/4 S40508 SCREW)

172371 ROD

172281 172251
PRESSER BAR PRESSER BAR 171101
172231 LIFTING BRACKET SPRING ADJUSTER BEVEL GEAR PINION
PRESSER BAR (3/16 S32011 SCREW) (3/16 S32031 SCREW) 172341 PIN (1/4 S40008 SCREW)

172301
PRESSER FOOT 172331 172041
(11/64 S40010 SCREW) 172321+172311 LOWER SHAFT CRANK BEVEL GEAR, LOWER
(11/64 N40102 NUT) CONNECTING ROD & ECCENTRIC ASM. (11/64 S40005 SCREW) (1/4 S40008 SCREW)
