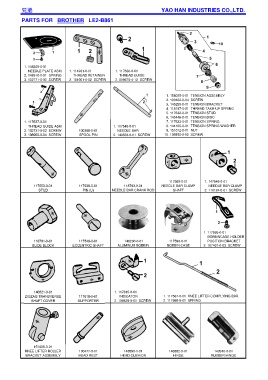

Page 256 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

PARTS FOR BROTHER LE2-B861

1. 148309-0-01
NEEDLE PLATE ASM. 1. 114931-0-01 1. 117636-0-01
2. 148310-0-01 SPRING THREAD RETAINER THREAD GUIDE
3. 122771-0-02 SCREW 2. 151601-0-02 SCREW 2. 009670-4-12 SCREW

1. 158025-0-01 TENSION ASSEMBLY
2. 100402-0-04 SCREW
3. 145250-0-01 TENSION BRACKET
4. 118197-0-01 THREAD TAKE-UP SPRING
5. 117632-0-01 TENSION STUD
6. 145446-0-01 TENSION DISC
1. 117637-0-01 7. 117633-0-01 TENSION SPRING
THREAD GUIDE ASM 1. 117546-0-01 8. 144105-0-01 TENSION SPRING WASHER
2. 102731-0-02 SCREW 100386-0-01 NEEDLE BAR 9. 151012-0-01 NUT
3. 108960-0-04 SCREW SPOOL PIN 2. 140553-0-01 SCREW 10. 103950-0-02 SCREW

117560-0-01 1. 147646-0-01
117553-0-01 117939-0-01 118793-0-01 NEEDLE BAR CLAMP NEEDLE BAR CLAMP
STUD PIN (U) NEEDLE BAR CRANK ROD SHAFT 2. 110124-0-01 SCREW

兄弟兄弟兄弟兄弟

1. 117595-0-01
BOBBINCASE HOLDER
118791-0-01 117549-0-01 146290-0-01 117596-0-01 POSITION BRACKET
SLIDE BLOCK ECCENTRIC SHAFT ALUMINUM BOBBIN BOBBIN CASE 2. 107407-0-03 SCREW

140521-0-01 1. 117615-0-01
ZIGZAG TRANSVERSE 117618-0-01 INDICATOR 1. 117567-0-01 KNEE LIFTER COMPLYING BAR
SHAFT COVER SUPPORTER 2. 106629-0-01 SCREW 2. 117568-0-01 SPRING

151609-0-01
KNEE LIFTER ROLLER 100477-0-01 148890-1-01 143882-0-01 143910-0-01
BRACKET ASSEMBLY HEAD REST HEAD CUSHION HINGE RUBBER HINGE
