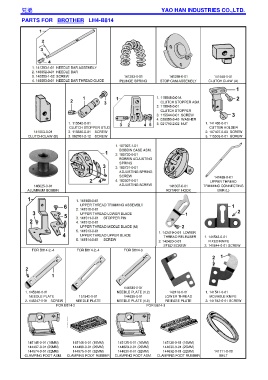

PARTS FOR BROTHER LH4-B814

1. 141293-1-01 NEEDLE BAR ASSEMBLY
2. 148052-0-01 NEEDLE BAR
3. 140553-1-02 SCREW 141283-0-01 141286-0-01 141548-0-01
4. 148053-0-01 NEEDLE BAR THREAD GUIDE PLUNGE SPRING STOP CAM ASSEMBLY CLUTCH CLAW (A)

1. 115545-0-01A
CLUTCH STOPPER ASM.
2. 115545-0-01
CLUTCH STOPPER
3. 115544-0-01 SCREW
4. 028050-2-40 WASHER
1. 115542-0-01 5. 021710-2-02 NUT 1. 141480-0-01
CLUTCH STOPPER STUD CUTTER HOLDER
141553-0-01 2. 115546-0-01 SCREW 2. 107407-0-03 SCREW
CLUTCH CLAW (B) 3. 062761-2-12 SCREW 3. 115503-0-01 SCREW

1. 107097-1-01
BOBBIN CASE ASM.
2. 180720-0-01
BOBBIN ADJUSTING
SPRING
3. 180721-0-01
ADJUSTING SPRING
SCREW 141489-0-01
4. 183507-0-01 UPPER THREAD
146025-0-01 ADJUSTING SCREW 141307-0-01 TRIMMING CONNECTING
ALUMINUM BOBBIN ROTARY HOOK BAR (L)

1. 141509-0-01
UPPER THREAD TRIMMING ASSEMBLY
2. 141510-0-01
UPPER THREAD LOWER BLADE
3. 141511-0-01 STOPPER PIN
兄弟兄弟兄弟兄弟
4. 141512-0-01
UPPER THREAD MIDDLE BLADE (M)
5. 141513-0-01 1. 142419-0-01 LOWER
UPPER THREAD UPPER BLADE
THREAD RELEASER 1. 141543-0-01
6. 141514-0-01 SCREW
2. 142420-0-01 FIXED KNIFE
STUD SCREW 2. 141544-0-01 SCREW
FOR B814-2,-4 FOR B814-2,-4 FOR B814-3

144635-0-01
1. 145246-0-01 NEEDLE PLATE (1.2) 142416-0-01 1. 141541-0-01
NEEDLE PLATE 151842-0-01 144639-0-01 LOWER THREAD MOVABLE KNIFE
2. 145247-0-01 SCREW NEEDLE PLATE NEEDLE PLATE (1.6) REIEASE PLATE 2. 141542-0-01 SCREW
FOR B814-2 FOR B814-3

145145-0-01 (16MM) 145146-0-01 (16MM) 145135-0-01 (16MM) 145136-0-01 (16MM)
144497-0-01 (25MM) 144498-0-01 (25MM) 144629-0-01 (25MM) 144630-0-01 (25MM)
144574-0-01 (32MM) 144575-0-01 (32MM) 144631-0-01 (32MM) 144632-0-01 (32MM) 141711-0-00
CLAMPING FOOT ASM. CLAMPING FOOT RUBBER CLAMPING FOOT ASM. CLAMPING FOOT RUBBER BELT
