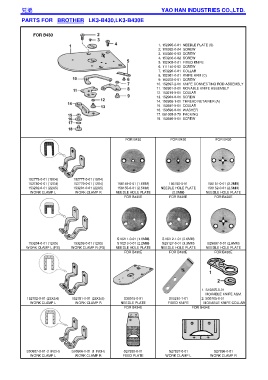

Page 259 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

PARTS FOR BROTHER LK3-B430,LK3-B430E

FOR B430

1. 152995-0-01 NEEDLE PLATE (S)
2. 100032-0-04 SCREW
3. 100360-0-03 SCREW
4. 153208-0-02 SCREW
5. 152905-0-01 FIXED KNIFE
6. 111140-0-02 SCREW
7. 153220-0-01 COLLAR
8. 152981-0-01 KNIFE ARM (C)
9. 153222-0-01 SCREW
10. 152897-2-01 KNIFE CONNECTING ROD ASSEMBLY
11. 152901-0-01 MOVABLE KNIFE ASSEMBLY
12. 153219-0-01 COLLAR
13. 152904-0-01 SCREW
14. 152906-1-01 THREAD RETAINER (A)
15. 153597-0-01 COLLAR
16. 153596-0-01 WASHER
17. 081008-0-70 PACKING
18. 153598-0-01 SCREW

FOR B430 FOR B430 FOR B430

152778-0-01 (18X4) 152777-0-01 (18X4)
152780-0-01 (12X4) 152779-0-01 (12X4) 156149-0-01 (1.6MM) 156150-0-01 156151-0-01 (2.2MM)
153202-0-01 (22X5) 153201-0-01 (22X5) 156155-0-01 (2.5MM) NEEDLE HOLE PLATE 156152-0-01 (2.5MM)
WORK CLAMP L WORK CLAMP R NEEDLE HOLE PLATE (2.2MM) NEEDLE HOLE PLATE
FOR B430E FOR B430E FOR B430E

兄弟兄弟兄弟兄弟

S10211-0-01 (1.6MM) S10212-1-01 (2.6MM)
153204-0-01 (12X5) 153203-0-01 (12X5) S10213-0-01 (2.2MM) S25127-0-01 (3.3MM) S29997-0-01 (2.6MM)
WORK CLAMP L (PS) WORK CLAMP R (PS) NEEDLE HOLE PLATE NEEDLE HOLE PLATE NEEDLE HOLE PLATE
FOR B430E FOR B430E FOR B430E

1. S10205-0-01
MOVABLE KNIFE ASM.
152782-0-01 (23X5.6) 152781-0-01 (23X5.6) S38015-0-01 S10210-1-01 2. S00705-0-01
WORK CLAMP L WORK CLAMP R NEEDLE PLATE FIXED KNIFE MOVABLE KNIFE COLLAR
FOR B434E FOR B434E

S00907-0-01 (1 INCH) S00906-0-01 (1 INCH) S27838-0-01 S27837-0-01 S27836-0-01
WORK CLAMP L WORK CLAMP R FEED PLATE WORK CLAMP L WORK CLAMP R
