Page 479 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

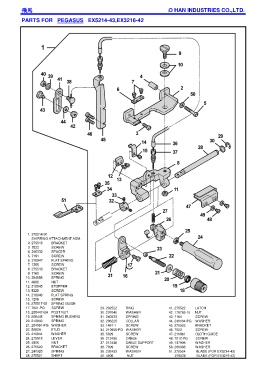

PARTS FOR PEGASUS EX5214-43,EX3216-42

飛馬飛馬飛馬飛馬

1. 275514-91
SHIRRING ATTACHMENT ASM.
2. 275515 BRACKET
3. 7022 SCREW
4. 240332 SPACER
5. 7191 SCREW
6. 210947 FLAT SPRING
7. 1206 SCREW
8. 275516 BRACKET
9. 7160 SCREW
10. 204888 SPRING
11. 4806 NUT
12. 210945 STOPPER
13. 5328 SCREW
14. 210946 FLAT SPRING
15. 1206 SCREW
16. 275517-92 SPRING GUIDE
17. 7021-PG SCREW 29. 202522 RING 41. 275522 LATCH
18. 208447-UA POST NUT 30. 207045 WASHER 42. 179765-15 NUT
19. 208448 SPRING BUSHING 31. 240323 SPRING 43. 7164 SCREW
20. 210940 SPRING 32. 206225 COLLAR 44. 240104-PG WASHER
21. 204091-PG WASHER 33. 1457-1 SCREW 45. 275523 BRACKET
22. 5082A STUD 34. 210955-PG WASHER 46. 7022 SCREW
23. 210944 WASHER 35. 5029 SCREW 47. 210961 CLOTH GUIDE
24. 275518 LEVER 36. 212435 CABLE 48. 7012-PG SCREW
25. 4806 NUT 37. 212436 CABLE SUPPORT 49. 137906 WASHER
26. 275520 BRACKET 38. 7099 SCREW 50. 200098 WASHER
27. 240320 SPRING 39. 202433 WASHER 51. 275524 BLADE (FOR EX5214-43)
28. 275521 SHAFT 40. 4806 NUT 275525 BLADE (FOR EX3216-42)
