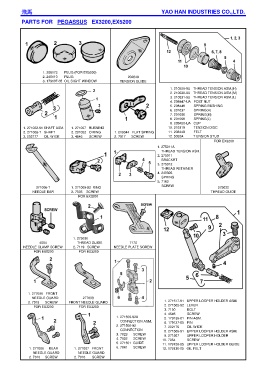

Page 480 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

PARTS FOR PEGASSUS EX3200,EX5200

1. 208173 PLUG (FOR EX5200)
2. 240110 PLUG 202849
3. 179107-05 OIL SIGHT WINDOW TENSION GUIDE
1. 210529-9U THREAD TENSION ASM.(H)
2. 210530-9U THREAD TENSION ASM.(M)
3. 210531-9U THREAD TENSION ASM.(L)
4. 208447-UA POST NUT
5. 208448 SPRING BUSHING
6. 201037 SPRING(H)
7. 201086 SPRING(M)
8. 201068 SPRING(L)
9. 208450-UA CUP
1. 271022-91 SHAFT ASM. 1. 271007 BUSNING 10. 210319 TENSION DISC
2. 271008-T SHAFT 2. 201022 O RING 1. 210044 FLAT SPRING 11. 208449 FELT
3. 202177 OIL WICK 3. 4546 SCREW 2. 7017 SCREW 12. 5082A T ENSION STUD
FOR EX3200
1. 275011A
THREAD TENSION ASM.
2. 275011
BRACKET
3. 275012
THREAD RETAINER
4. 240326
SPRING
5. 7163
SCREW
271006-T 1. 271009-92 RING 275022
NEEDLE BAR 2. 7035 SCREW THREAD GUIDE
FOR EX3200

飛馬飛馬飛馬飛馬

1. 275030
4554 THREAD GUIDE 7170
NEEDLE CLAMP SCREW 2. 7119 SCREW NEEDLE PLATE SCREW
FOR EX5200 FOR EX3200

1. 277005 FRONT
NEEDLE GUARD 277008
1. 271517-91 UPPER LOOPER HOLDER ASM.
2. 7019 SCREW FRONT NEEDLE GUARD
2. 271505-92 LEVER
FOR EX3200 FOR EX3200
3. 7150 BOLT
4. 4545 SCREW
1. 271500-92A 5. 179136-01 PIN ASM.
CONNECTION ASM.
6. 179137-05 PIN
2. 271500-92 7. 202176 OIL WICK
CONNECTION
8. 271506-91 UPPER LOOPER HOLDER ASM.
3. 7023 SCREW 9. 271507 UPPER LOOPER HOLDER
4. 7022 SCREW 10. 7054 SCREW
5. 271501 GUIDE
11. 179129-05 UPPER LOOPER HOLDER GUIDE
1. 277006 REAR 1. 277007 FRONT 6. 7041 SCREW 12. 179130-05 OIL FELT
NEEDLE GUARD NEEDLE GUARD
2. 7010 SCREW 2. 7010 SCREW
