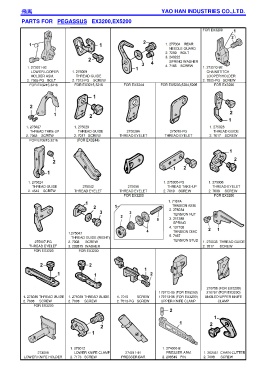

PARTS FOR PEGASSUS EX3200,EX5200

FOR EX3200

1. 277004 REAR
NEEDLE GUARD
2. 7259 BOLT
3. 240222
SPRING WASHER
1. 272001-92 4. 7165 SCREW 1. 273510-92
LOWER LOOPER 1. 275009 CHAINSTITCH
HOLDER ASM. THREAD GUIDE LOOPER HOLDER
2. 7055-PG BOLT 2. 7012-PG SCREW 2. 7055-PG SCREW
FOR EX3215,3216 FOR EX3215,3216 FOR EX3244 FOR EX5203,5204,5205 FOR EX3200

1. 275027 1. 275029 1. 275028
THREAD TAKE-UP THREAD GUIDE 275029A 275018-PG THREAD GUIDE
2. 7062 SCREW 2. 7017 SCREW THREAD EYELET THREAD EYELET 2. 7017 SCREW
FOR EX3215,3216 (FOR EX3244)

1. 275024 1. 275005-PG 1. 275006
THREAD GUIDE 275042 275056 THREAD TAKE-UP THREAD EYELET
2. 4543 SCREW THREAD EYELET THREAD EYELET 2. 7019 SCREW 2. 7008 SCREW
FOR EX3200 FOR EX3200
1. 7167A
TENSION ASM.
2. 275034
TENSION NUT
3. 211388
飛馬飛馬飛馬飛馬
SPRING
4. 137108
TENSION DISC
1.275047
5. 7167
THREAD GUIDE (RIGHT)
275007-PG 2. 7008 SCREW TENSION STUD 1. 275035 THREAD GUIDE
THREAD EYELET 3. 202875 WASHER 2. 7017 SCREW
FOR EX3200 FOR EX3200

210756 (FOR EX5200)
179712-05 (FOR EX5200) 210757 (FOR EX3200)
1. 275036 THREAD GUIDE 1. 275039 THREAD GUIDE 1. 7010 SCREW 179713-05 (FOR EX3200) ANGLED UPPER KNIFE
2. 7008 SCREW 2. 7008 SCREW 2. 7013-PG SCREW UPPER KNIFE CLAMP CLAMP
FOR EX3200

1. 273012 1. 274000-B
273009 LOWER KNIFE CLAMP 274011-91 PRESSER ARM. 1. 202451 CHAIN CUTTER
LOWER KNIFE HOLDER 2. 7173 SCREW PRESSER BAR 2. 208549 PIN 2. 7008 SCREW
