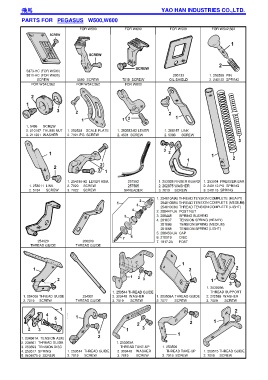

Page 494 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

PARTS FOR PEGASUS W500,W600

FOR W500 FOR W600 FOR W500 FOR W542,562

5373-HC (FOR W500)
5511-HC (FOR W600) 206133 1. 252526 PIN
SCREW 5590 SCREW 7019 SCREW OIL SHIELD 2. 240122 SPRING
FOR W542,562 FOR W542,562 FOR W600

1. 5486 SCREW
2. 210167 THUMB NUT 1. 252538 SCALE PLATE 1. 252652-92 LEVER 1. 206157 LINK
3. 211301 WASHER 2. 7021-PG SCREW 2. 4531 SCREW 2. 5386 SCREW

1. 254516-92 LEVER ASM. 257552 1. 253028 FINGER GUARD 1. 253004 PRESSER BAR
1. 253011 LINK 2. 7020 SCREW 257565 2. 202875 WASHER 2. 240112-PG SPRING
2. 5184 SCREW 3. 7022 SCREW SPREADER 3. 7010 SCREW 3. 240113 SPRING
1. 254010A9U THREAD TENSION COMPLETE (HEAVY)
254010B9U THREAD TENSION COMPLETE (MEDIUM)
254010C9U THREAD TENSION COMPLETE (LIGHT)
2. 208447-UA POST NUT
3. 208448 SPRING BUSHING
4. 201037 TENSION SPRING (HEAVY)
飛馬飛馬飛馬飛馬
201086 TENSION SPRING (MEDIUM)
201068 TENSION SPRING (LIGHT)
5. 208450-UA CAP
6. 210319 DISC
254020 206203 7. 1817-2A POST
THREAD GUIDE THREAD GUIDE

1. 253509A
1. 253544 THREAD GUIDE THREAD SUPPORT
1. 254008 THREAD GUIDE 234521 2. 303448 WASHER 1. 253508A THREAD GUIDE 2. 202588 WASHER
2. 7019 SCREW THREAD GUIDE 3. 7019 SCREW 2. 7077 SCREW 3. 7009 SCREW

1. 234561A TENSION ASM.
2. 234561 THREAD GUIDE 1. 253505A
3. 253593 TENSION DISC THREAD TAKE-UP 1. 253506
4. 253517 SPRING 1. 253514 THREAD GUIDE 2. 303448 WASHER THREAD TAKE-UP 1. 253515 THREAD GUIDE
5. W09070-2 SCREW 2. 7019 SCREW 3. 7019 SCREW 2. 7019 SCREW 2. 7019 SCREW
