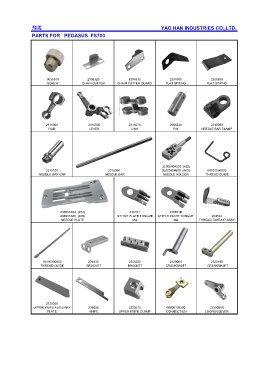

Page 497 - 2017 MASTER CATALOG
P. 497
飛馬 YAO HAN INDUSTRIES CO.,LTD.
PARTS FOR PEGASUS FS700
0055910 2305320 2305330 2305300 2305280
SCREW CHAIN CUTTER CHAIN CUTTER GUARD FLAT SPRING FLAT SPRING
2315000 2315030 2315070 2006540 2315080
ROD LEVER LINK PIN NEEDLE BAR CLAMP
2L000404520 (452)
2315100 2315090 2L000404600 (460) 6K001500000
NEEDLE BAR CAP NEEDLE BAR NEEDLE HOLDER THREAD GUIDE
236001A52 (452) 236101 236101B
236001A60 (460) STITCH PLATE TONGUE STITCH PLATE TONGUE 234532
NEEDLE PLATE 452 460 THREAD TAKE-UP ASSY.
1K500300000 234530 2345260 2320060 2320190
THREAD GUIDE BRACKET BRACKET CRANKSHAFT CRANKSHAFT
2320260
UPPER KNIFE AUXILIARY 236606 2320210 4B000109200 232505A0
PLATE KNIFE UPPER KNIFE CLAMP CONNECTION LOOPER LEVER
