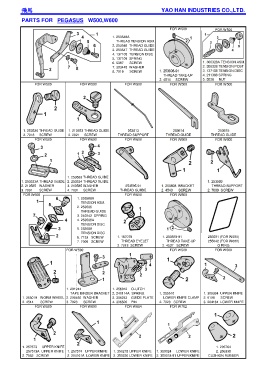

Page 495 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

PARTS FOR PEGASUS W500,W600

FOR W500 FOR W500
1. 253548A
THREAD TENSION ASM.
2. 253548 THREAD GUIDE
3. 253547 THREAD GUIDE
4. 137108 TENSION DISC
5. 137109 SPRING
6. 5387 SCREW 1. 306328A TENSION ASM.
7. 303448 WASHER 2. 306328 TENSION POST
8. 7019 SCREW 1. 253608-91 3. 137108 TENSION DISC
THREAD TAKE-UP 4. 211388 SPRING
2. 4514 SCREW 5. 5526 NUT
FOR W500 FOR W500 FOR W500 FOR W500 FOR W500

1. 253536 THREAD GUIDE 1. 210353 THREAD GUIDE 253613 253614 253615
2. 7018 SCREW 2. 2921 SCREW THREAD SUPPORT THREAD GUIDE THREAD GUIDE
FOR W500 FOR W600 FOR W600 FOR W600 FOR W600

1. 253533 THREAD GUIDE
1. 253533A THREAD GUIDE 2. 253534 THREAD GUIDE 1. 253599
2. 210585 WASHER 3. 210585 WASHER 253595-91 1. 253598 BRACKET THREAD SUPPORT
3. 7031 SCREW 4. 7031 SCREW THREAD GUIIDE 2. 4543 SCREW 2. 7009 SCREW
FOR W600 FOR W600 FOR W600
1. 253586A
TENSION ASM.
2. 253586
THREAD GUIDE
3. 240242 SPRING
4. 253588A
飛馬飛馬飛馬飛馬
TENSION DISC
5. 253588
TENSION DISC
6. 7133 SCREW 1. 167079 1. 253589-91 255001 (FOR W500)
7. 7008 SCREW THREAD EYELET THREAD TAKE-UP 255042 (FOR W600)
2. 7018 SCREW 2. 4537 SCREW O RING
FOR W500 FOR W500 FOR W500

1. 201914 1. 256012 CLUTCH
TAPE BINDER BRACKET 2. 240114A SPRING 1. 255510 1. 306394 UPPER KNIFE
1. 255019 WORM WHEEL 2. 206460 WASHER 3. 306243 GUIDE PLATE LOWER KNIFE CLAMP 2. 5109 SCREW
2. 4514 SCREW 3. 7028 SCREW 4. 306500 PIN 2. 7028 SCREW 3. 204161 LOWER KNIFE
FOR W600 FOR W600 FOR W664 FOR W762

1. 257573 UPPER KNIFE 1. 205764
257573A UPPER KNIFE 1. 257574 UPPER KNIFE 1. 350218 UPPER KNIFE 1. 350024 LOWER KNIFE 2. 206338
2. 7062 SCREW 2. 204161A LOWER KNIFE 2. 350220 LOWER KNIFE 2. 350018-91 UPPER KNIFE CUSHION RUBBER
